Wood Patterned Painted Aluminum Coil Fire Resistance DX5ID Grade

Product Categories

HONG KONG SUNRISE MATERIALS CO., LIMITED

Contact Now

Name: Wood Patterned Painted Aluminum Coil Fire Resistance DX5ID Grade
Brand: Sunrise
Price: 1 USD

Brand Name : Sunrise

Model Number : MARBLE PATTERNED STEEL SHEET

Place of Origin : China (Mainland)

MOQ : 25 Tons

Price : According to Latest Market Price and Exact Specification

Supply Ability : 10000 tons

Delivery Time : 15 days-25 days

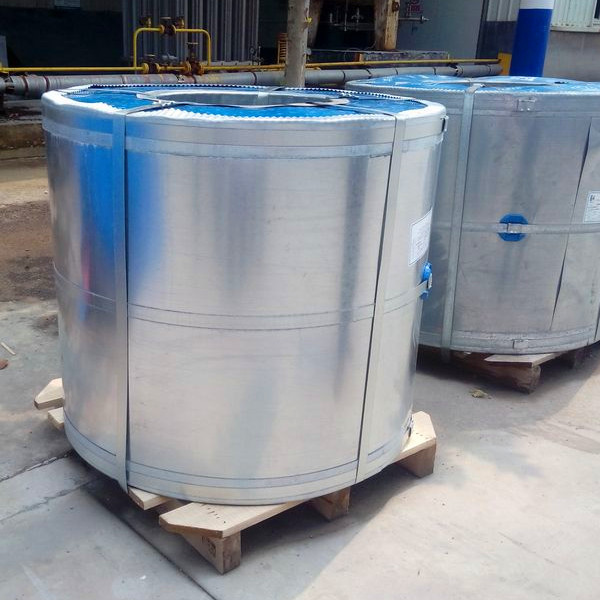

Packaging Details : 2 layers of Plastic film+1 layer anti-water paper+steel sheet+4 steel strip

Payment Terms : T/T, LC AT SIGHT

Certification : ISO / SGS / IBR / ROHS / BV

Grade : SGCC, DX5ID, ASTM, EN10142, S350GD

Thickness : 0.17mm-1.00mm

Paint : PE , PVDF , SMP , HDP

Width : 800-1250mm

Zinc Coating : Z50 to Z200g/m2 ; AZ30-180g/m2

Top Paint Coat Thickness : 17~25 um at least

Back Paint : 5~8 um

Monthly Capacity : 10000tons

Contact Now

Wood Patterned Color Coated Steel Coil , Wood Pre-painted Steel Sheet In Coil , Long Durable Decoration

Introduction

Specification
Base Material	HDGI ALUZINC CR
Grade	SGCC, DX5ID, ASTM, EN10142, S350GD, etc
Thickness	0.17~1.00mm
Width	≤1250mm
Zinc Coating	50~200g/m2
Alu-Zn	40~150g/m2

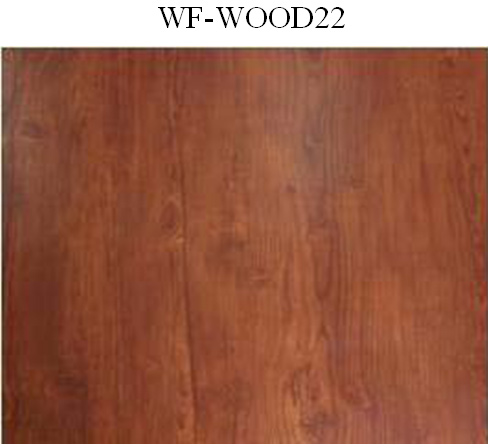

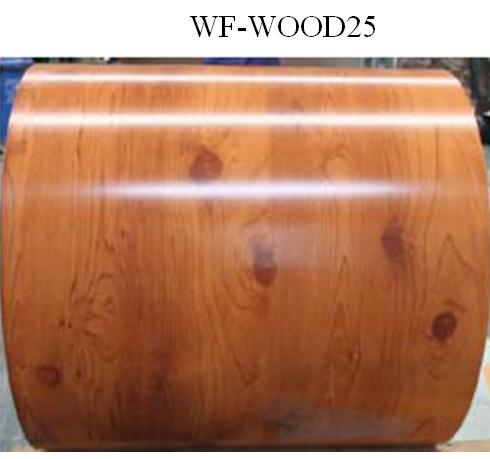

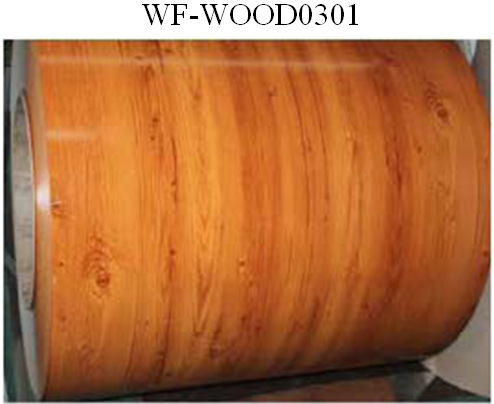

Pattern	Wood imitation, Marble, Brush Brick, and Camouflage series, etc
Paint	PE , PVDF , SMP , HDP
Coil ID	ø508mm
Coil Weight	≤6T
Product Property
Test Item	Standard
T banding	0T~3T
Pencil Hardness	≥2H
Impact	≥9J
Mek (Time)	≥100
Salt Spray	≥720hr
Acid Stability	Dip in 5% HCL liquor for 300 hr , no bubble , no color change and no peel-off
Alkali resistance	Dip in 5% NaOH liquor for 300 hr , no bubble , no color change and no peel-off

Superiority

1.good adhesion , can be roll forming

2.the color not change even after being roasted under high temperture for 6-12 years

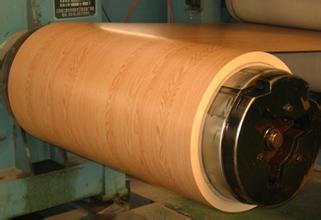

3.Process: Continuous coil coating line --- 3 coating and 3 bake

4. Protective film can be added

Wood Patterned Painted Aluminum Coil Fire Resistance DX5ID Grade
